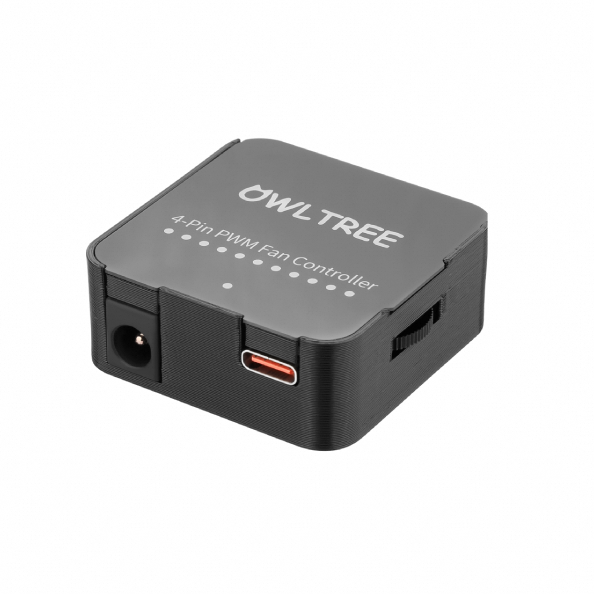

12V 4 Pin PWM Fan Speed Controller PC Fan Hub 6 Fans Supported, Powered by Type-C PD3.0 QC 3.0 and DC 5521 with Max Total 60W Output



Description

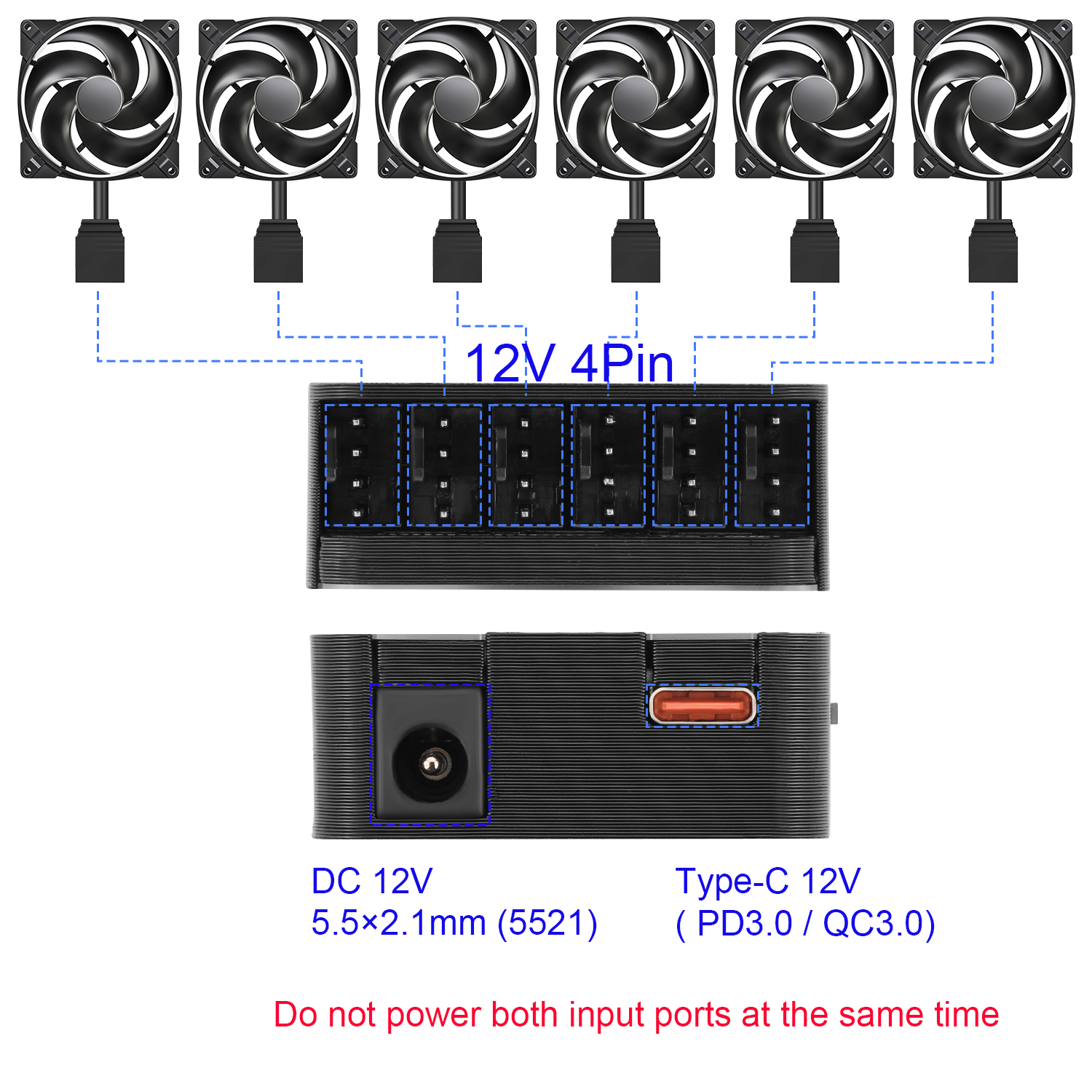

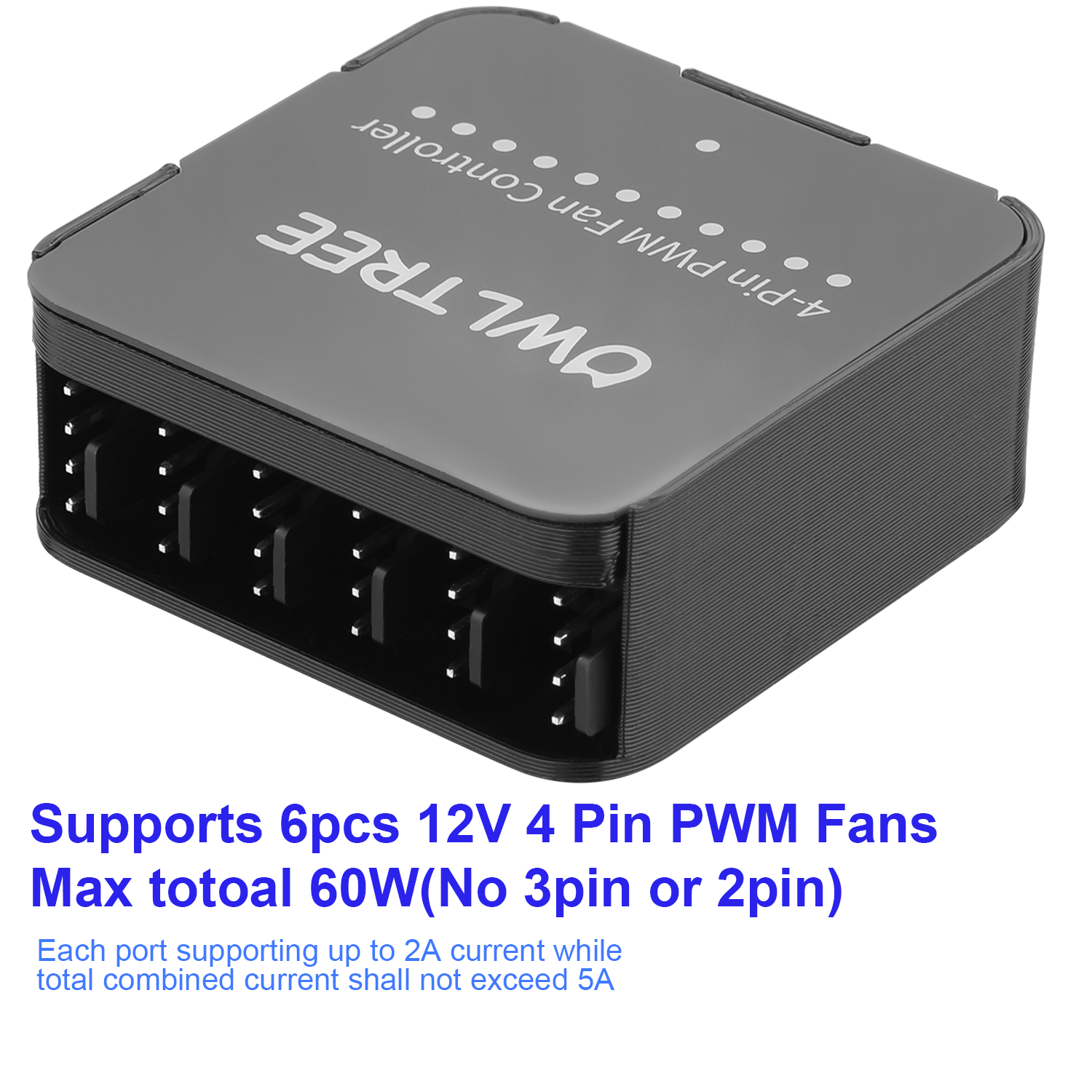

● Supports 6pcs 4 Pin PWM Fans (Fans not included, Not compatible with 3-pin/2-pin fans)

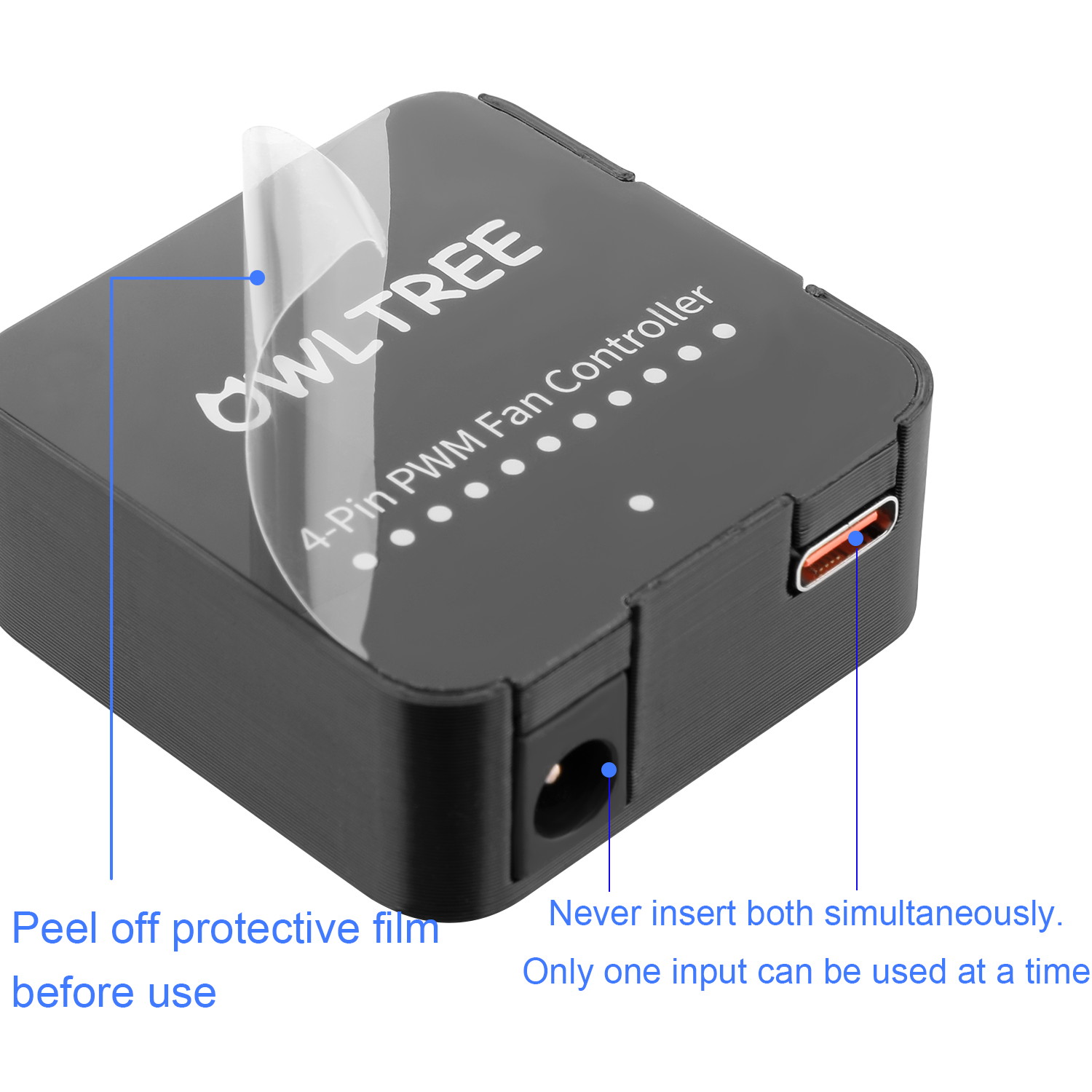

● Flexible Power Supply Input: Compatible with both Type-C 12V (Supports QC3.0 / PD3.0) and DC 5.5×2.1mm (5521) 12V input, allowing flexible power options
● Maximum total power output: 60W (5A@12V), with each port supporting up to 2A current while total combined current shall not exceed 5A

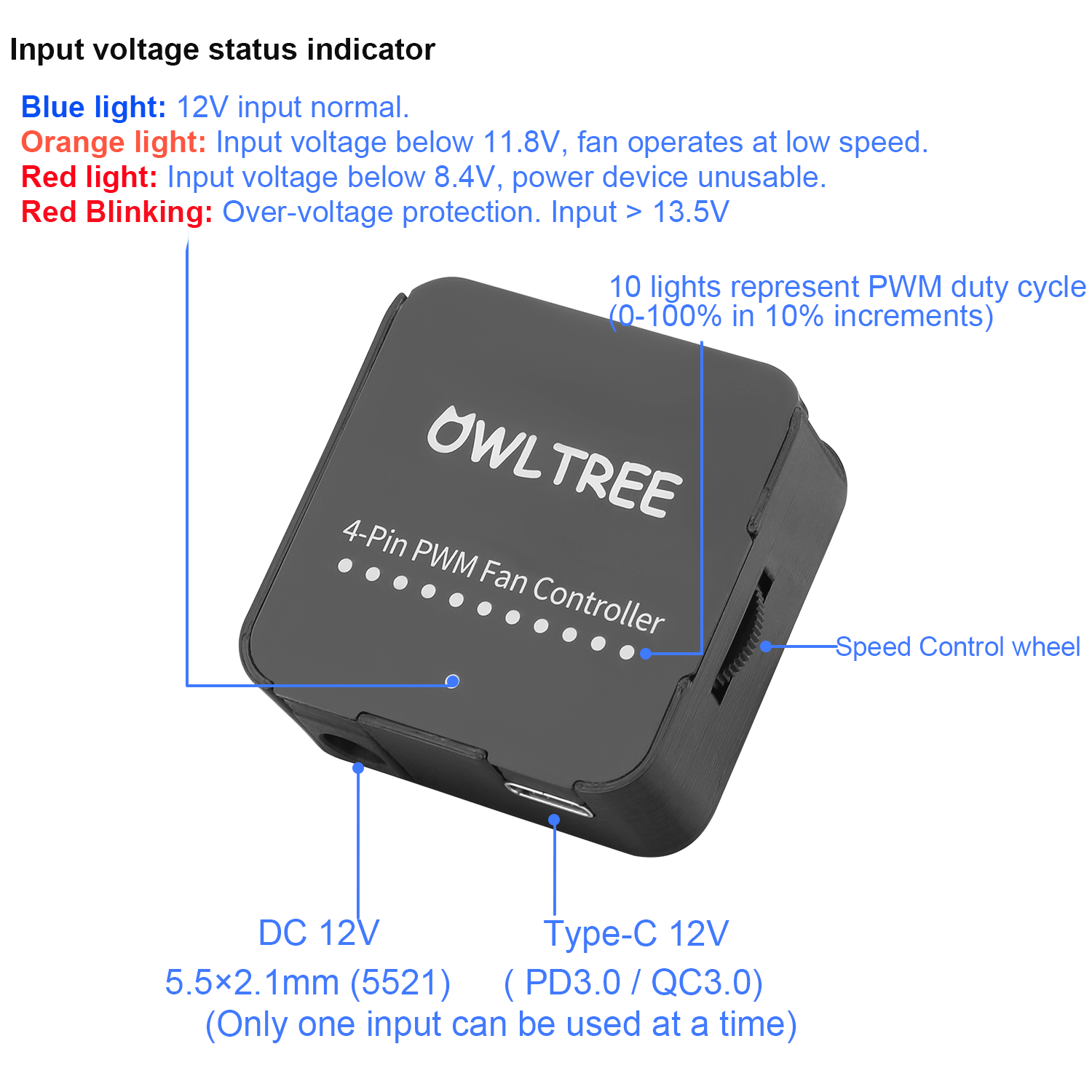

● Adjustable PWM duty cycle: 10 lights represent PWM duty cycle (0-100% in 10% increments), the color of indicator light shows input voltage status. ( Blue light: 12V input normal. Orange light: Input voltage below 11.8V, fan operates at low speed. Red light: Input voltage below 8.4V, your power device unusable.)

Fan speed regulator 6-port fast charging 12V PC071a

녒 Contact Us
낙Add to cart

Product Details

Price：
¥ 0.00
Quantity： ꄷ ꄸ
Original price： ¥0.00

Pay with Ease:

Parameter

  • Power Connector Type
    Type-C, DC5521
  • Voltage
    12 Volts
  • Wattage
    60 watts
  • Cooling Method
    Air
  • Compatible Devices
    Desktop
  • Maximum Rotational Speed
    15000 rph

Free Delivery (Limited Time)

30 Days Free Returns

1-Year Warranty

● Supports 6pcs 4 Pin PWM Fans (Fans not included, Not compatible with 3-pin/2-pin fans)
● Flexible Power Supply Input: Compatible with both Type-C 12V (Supports QC3.0 / PD3.0) and DC 5.5×2.1mm (5521) 12V input, allowing flexible power options
● Maximum total power output: 60W (5A@12V), with each port supporting up to 2A current while total combined current shall not exceed 5A
● Adjustable PWM duty cycle: 10 lights represent PWM duty cycle (0-100% in 10% increments), the color of indicator light
